Sinotruk HOWO Windshield Outer Plate Assembly

howo cabin Windshield Outer Plate Assembly
China National Heavy Duty Truck Group Co., Ltd. We are manufacturer of SINOTRUK GROUP, offer the best quality and new trucks, HOWO HOWO A7 and so on. Choose us, Choose best partner! Join us now !

Content

Product Name	howo Windshield outer plate assembly
Brand	HOWO, HOWO A7,SHACMAN
Original factory	Shandong China
Delivery Time	Within 35 working days after receipt of payment
Port	Qingdao
Minimum Quantity	1
Package details	Cartoon, wooden box or as per customers requirement
Payment Term	L/C, T/T, Western Union

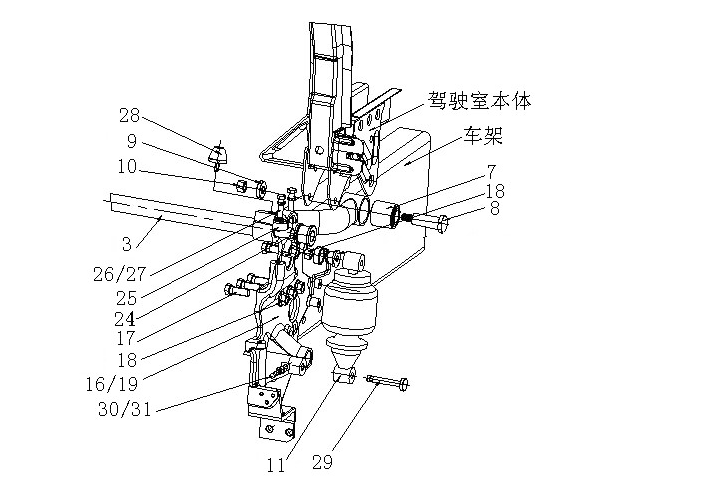

2	AZ1642430219	1	The cab flip shaft bus
3	AZ1642430220	1	The cab flip shaft welds the bus
7	AZ1642430061	2	Rubber bushings
8	AZ1642430071	2	Bolt
9	AZ1642430072	2	Shaped washers
10	190003888459	2	Self-locking nut
11	WG1642430385	2	Front suspension shock converter assembly (large stiffness coil spring)
12	AZ1642430265	2	T-bushing
13	Q1841490	2	Hex french face bolts
14	Q33014	2	All-metal hexagonal frankince self-lock nut
15	AZ1682439231	1	Left front bracket assembly
16	AZ1682430231	1	Left front bracket
17	Q151B1645	12	Hex head bolt
18	190003888459	12	Self-locking nut
	AZ1682439232	1	Right front bracket assembly (symmetrical to left)
19	AZ1682430232	1	Right front bracket (symmetrical to left)
24	AZ1642430263	2	Nylon bushings
25	AZ1642430235	2	Cover
26	Q40312	4	Spring washers
27	Q150B1245	4	Hex head bolt
28	AZ1642430083	2	Limit block bus
29	AZ1642430239	2	Pin shaft
30	Q2861030	2	Position the screw
31	Q340B10	2	Hex nut
32	AZ9003963001	2	Grease nozzles
33	WG1642430268	3	Adjust the gasket
34	Q151B1450	3	Hex head bolt
35	190003888458	3	Self-locking nut

Windshield Outer Plate Assembly,sinotruk howo,

2	AZ1642440132	1	Lower left bracket
3	AZ1642440133	1	Lower right bracket (symmetrical to left)
4	Q151B1640	10	Hex head bolt
5	190003888459	10	Self-locking nut
6	WG1642430081	2	Limit block bus
10	WG1642430082	2	Limit block washer
12	Q40310	2	Spring washers
13	Q340B10	2	Hex nut
14	WG1642440381	2	Rear suspension shock reducer bus (short cab stiffness).
16	Q1841470	2	Hex french face bolts
17	Q33014	2	All-metal hexagonal frankince self-lock nut
18	WG1642440101	2	Hydraulic locking system
20	Q1841480	2	Hex french face bolts
21	Q33014	2	All-metal hexagonal frankince self-lock nut
22	AZ1642440021	2	The transverse stabilizer bust
23	WG1642440031	2	Bushing I
25	WG1642440032	2	Bushing II
27	Q18414110	2	Hex french face bolts
28	AZ1642440039	2	Hex french face bolts
29	Q33014	4	All-metal hexagonal frankince self-lock nut
30	WG1642440040	1	Top left bracket assembly
32	WG1642440041	1	Upper right bracket assembly (symmetrical to left)
34	Q1841230	8	Hex french face bolts
35	WG1642440052	2	Cab lock signal switch
37	Q1460645	4	Hex head bolts, spring washers and peace washer assembly
38	AZ1642440069	1	Jam
39	199014280016	1	Bushings
40	190003559561	1	The card case
41	190003559516	1	Nuts for the tringed joints
42	WG1642440070	1	Three-way connector body
44	190003559561	1	The card case
45	190003559516	1	Nuts for the tringed joints
46	WG1642440071	1	Double elbow hose
48	190003171356	5	Plastic fastening straps
